How to replace a belt tensioning roller

March 31, 2023

8:31

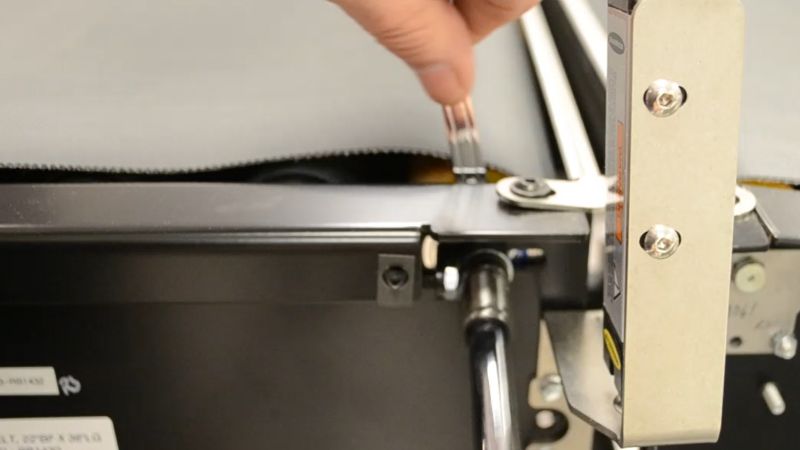

Replace Belt End Roller

This video shows how to replace the tensioning end roller on a belted induct section of ATR’s RollerBall® sorter.

  1. Loosen bolts on both sides of end roller
  2. Remove next two idler rollers
  3. Remove the end roller
  4. Insert new end roller and finger-tighten bolts
  5. Reinsert the two adjacent idler rollers
  6. Tension the belt and finish tightening bolts
